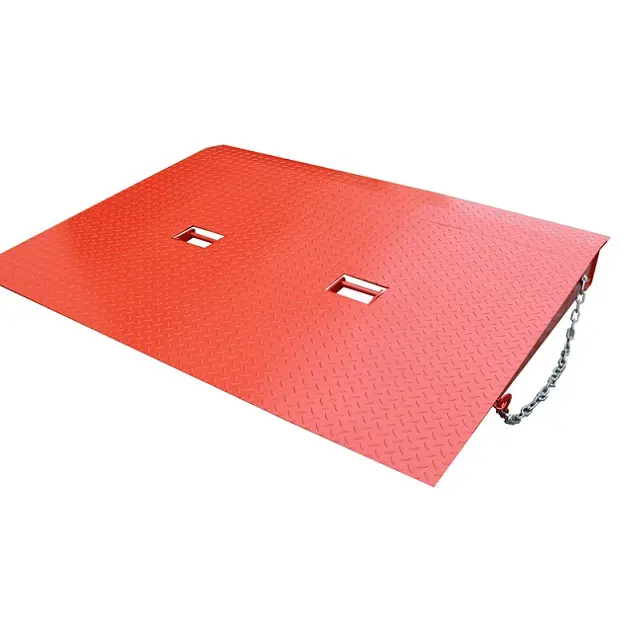

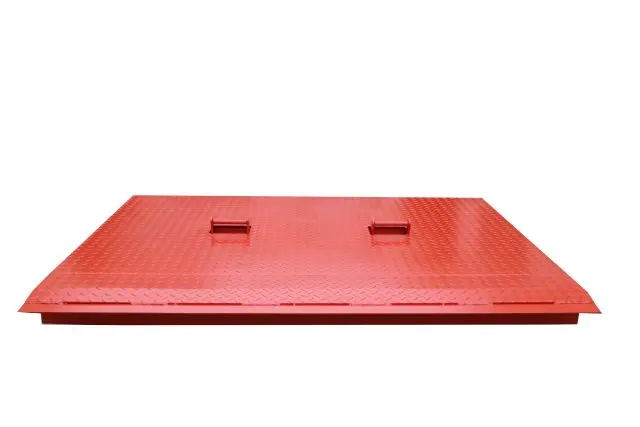

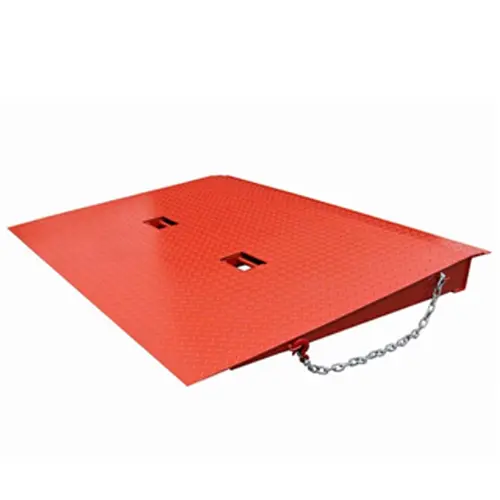

AHFCR65 Shipping Container Ramp
FCR65 container ramp has an overall length of I .5 meters allowing easy placement and removal of the first and second line of pallets in a container, fork pockets are provided with flip-up front tine pockets for ease of transport, Securing safety chains both sides of the container ramp prevent unintentional disengagement Of the ramp from the container, The Standard finish on the type FCR65 container ramp is Enamel painted (Mandarin Xl 4) over primed steel.
Specifications:
- Working Load Limit 6500kg
- Unit Weight 1 80kg

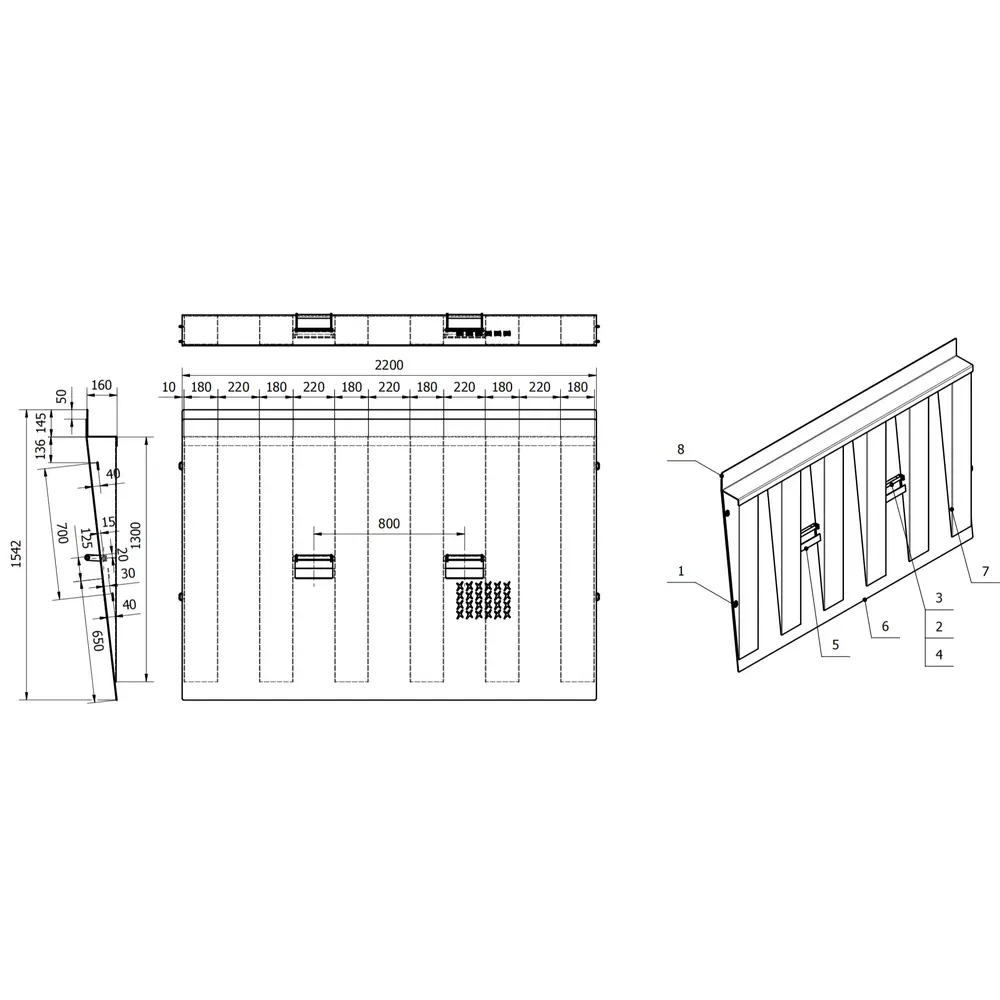

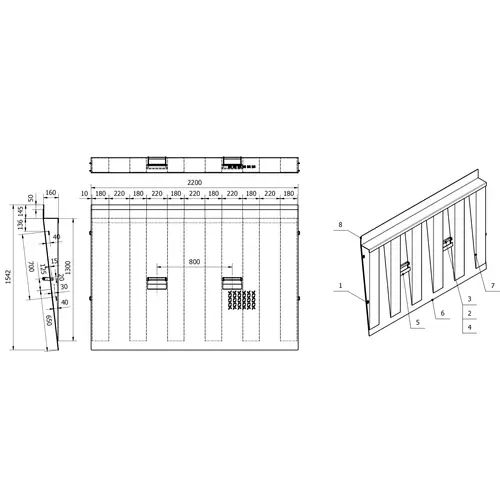

- Width 2000mm, Length 1542mm
- Flip-up Tine Pocket Size 160 x 60mm
- Flip-up Tine Pocket Centres 740mm
The AHFCR65 Shipping Container Ramp
Simplify and enhance your container loading and unloading operations with the AHFCR65 Shipping Container Ramp. Designed for durability and efficiency, this ramp is the ultimate solution for streamlining handling tasks while ensuring safety is never compromised.
With a robust working load limit of 6,500 kg, it easily handles the heaviest loads, making it ideal for warehouses, factories, and logistics operations. Its 1.5-meter length provides seamless access to the first and second rows of pallets in a container, significantly reducing the time and effort required for placement and removal.
Key Features
Safety First: The ramp is equipped with securing safety chains on both sides, preventing unintentional disengagement from the container and offering you peace of mind during operation.
Transport Friendly: Flip-up front tine pockets make transportation effortless, ensuring quick and easy mobility when the ramp needs to be relocated.
Durable Finish: Built for rugged use, the ramp features a tough enamel-painted finish (Mandarin X14) over primed steel, providing excellent resistance to wear and corrosion.
Specifications
Working Load Limit: 6,500 kg
Unit Weight: 180 kg
Dimensions: Width 2000 mm x Length 1,542 mm
Flip-up Tine Pocket Size: 160 x 60 mm
Pocket Centers: 740 mm
Engineered for reliability and performance, the AHFCR65 Shipping Container Ramp is your go-to solution for efficient, safe, and hassle-free material handling operations.
